Technicial Specifications
-
Areas of Use 2000 - 4500 m² in the field
-
Working Width 560 mm
-
Squeegee Width 703 mm
-
Solution Tank 70 Lt
-
Recovery Tank 70 Lt
-
Disc Brushes 1 Piece
-
Power Supply 24 Volt
-
Brush Motor Power 450 Watt
-
Suction Motor Power 310 Watt
-
Weight 190 ( With Battery ) Kg
-
Forward Working Speed 5,5 km/h
-
Productivity Theoretical 3000 m²/h
-
Brush Rpm 170 Rpm
-
Brush Pressure 23 Kg
-
Sound Level 70 dB (A)
-
Traction Motor Power 300 Lt
-
Machine Dimensions 1265*1030*600 mm
-
Included Accessories Brush, Battery, Charger
Product Description
Change the way you clean! Why walk when you can ride?

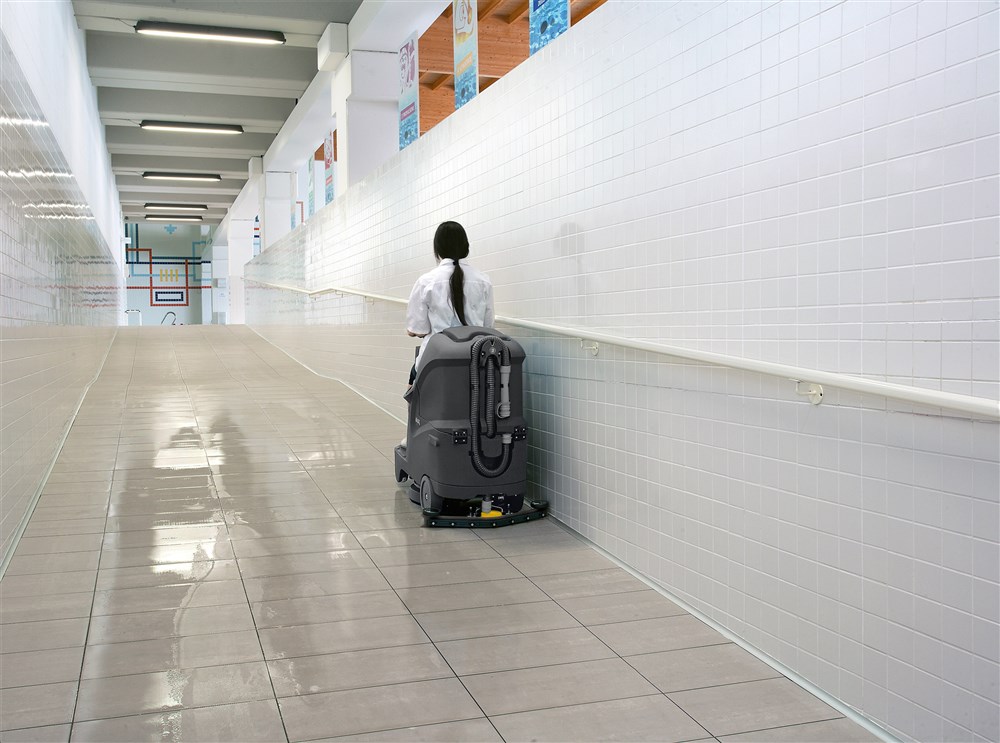

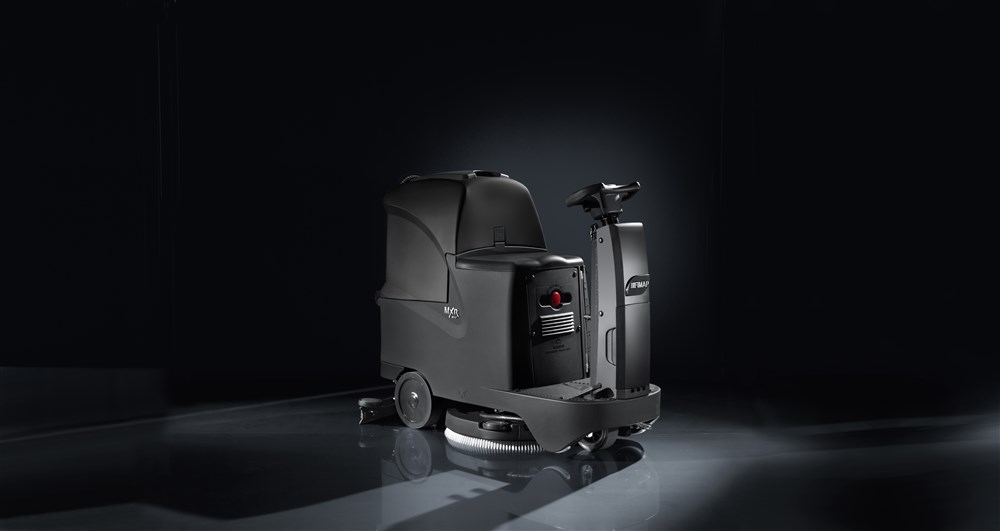

Pass from a walk-behind scrubbing machine to Mxr: with the same investment, you save 36% of the cleaning costs. Mxr is a ride-on scrubbing machine with automatic traction drive, battery-powered. It has one disc brush with a working width of 56 cm. For the same cost as a walk-behind model, Mxr offers greater ease of use and faster cleaning.

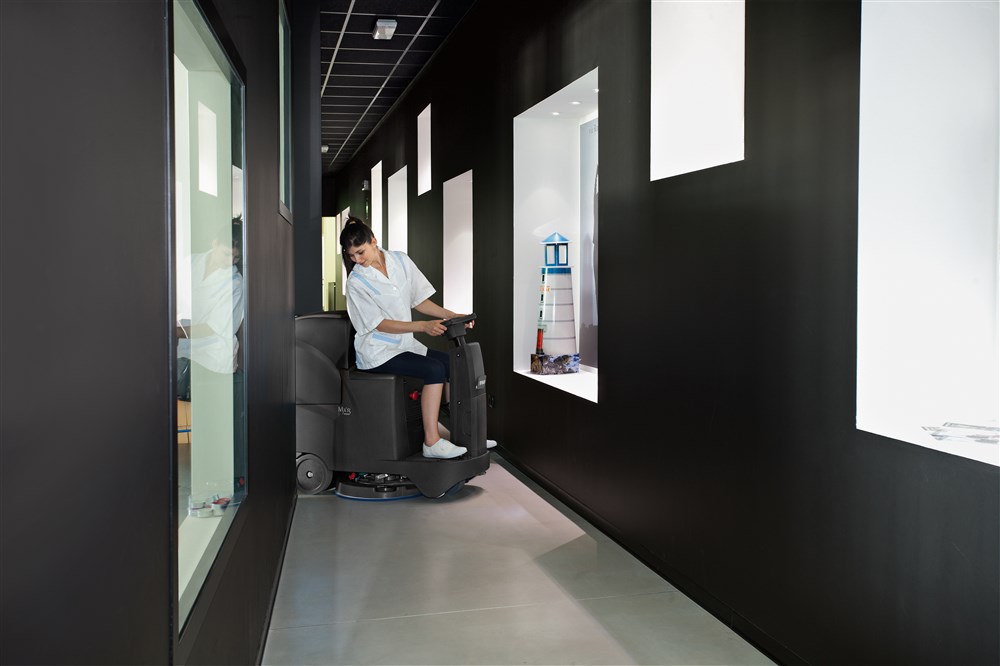

Its reduced dimensions and steering wheel of automotive inspiration give this model the necessary maneuverability to perform in small spaces, going very easily around obstacles to complete cleaning operations in a shorter time than a walk-behind machine and with considerable savings on cleaning costs.
Thanks to its ultra-compact size, the Mxr scrubbing machine can replace any traditional walk-behind scrubbing machine for the maintenance cleaning of surfaces up to 4,500 sq.m. in supermarkets, schools, wellness centers, hospitals and warehouses.
THE ADVANTAGES OF A RIDE-ON MACHINE WITH THE DIMENSIONS OF A WALK-BEHIND MACHINE
An exclusive, innovative design combines the comfort of a ride-on model with the dimensions of a walk-behind one. Every detail reveals the extreme care taken to make the most of the space, exploiting every single centimeter to ensure comfort and maneuverability.
A CONCENTRATED PACKAGE OF PRACTICALITY AND COMFORT
Designed to be user-friendly, comfortable and maneuverable – characteristics highlighted by the brand new steering wheel of automotive inspiration.
POSSIBILITY TO WORK AT TWICE THE SPEED OF A WALK-BEHIND SCRUBBING MACHINE
Mxr is a ride-on machine that can work where walk-behind models were once the only option. Compared with a walk-behind model of the same size and cost, Mxr works at twice the speed, is more comfortable to use because the operator is seated, and offers lower operating costs.
MAXIMUM SAFETY DURING USE AND WHEN MOVING AROUND
Ergonomic steering wheel with controls and display to make driving intuitive and safer, because the operator isn’t distracted and the washing functions are activated without ever leaving the driving seat.
FFM – FIMAP FLEET MANAGEMENT
Enter the FFM world via the My.Machine app and discover the advantages of being constantly connected!
FFM is a fleet management system which collects the data sent by every machine and transforms them into valuable information that you can see on your smartphone or tablet, thanks to the My.Machine app.
You can check the position and health status of the machine at any time, along with the square meters cleaned and the consumption figures.
In this way, the necessary evaluations can be made in order to offer customers the best, efficient service.
DESIGNED TO RESPECT THE ENVIRONMENT
Mxr aims to reduce the environmental impact during both production and use. It’s designed using fewer materials and concentrating on those that can be recycled, making end-of-life disposal easier. Mxr needs less packaging, thereby rationalizing the transport phase, and uses technologies that limit the waste of water, chemical product and energy. It’s built in line with the official certification standards, guaranteeing low noise and disturbance levels to safeguard the environment and favor the safety of the operator.
Reduces the use of the chemical product
Reduces noise levels
Reduces energy consumption
Reduces the volume of packaging and the number of transport means
Uses recyclable materials
Increases safety
Usage areas
- Building and Facility Management Firms
- Buildings & Sites
- Car dealerships and Services
- Educational Institutions
- Factories
- Food Production Facilities
- Healthcare Facilities
- Hotels and Restaurants
- Municipalities & Government Agencies
- Offices and Workplaces
- Outdoor & Indoor Car Parks
- Religious facilities
- Shopping malls
- Shops & Markets
- Show Halls
- Transportation facilities
- Warehouses
